Model

Brand

CORSAIR

Series

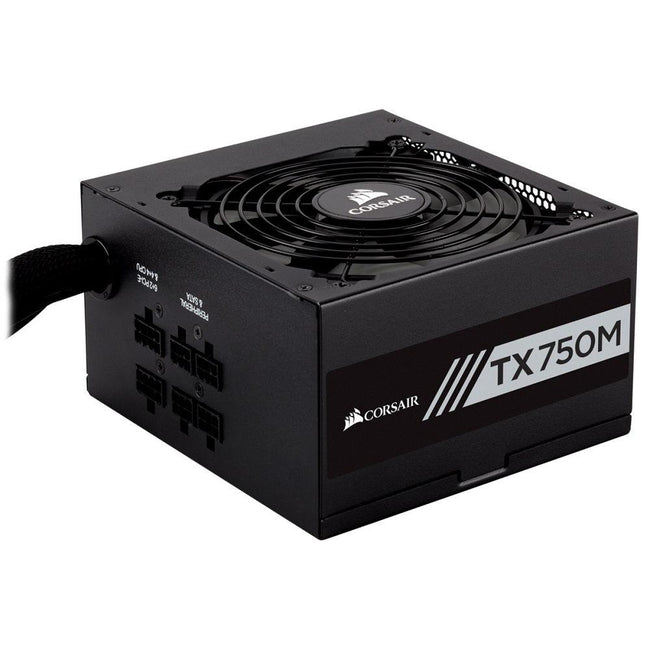

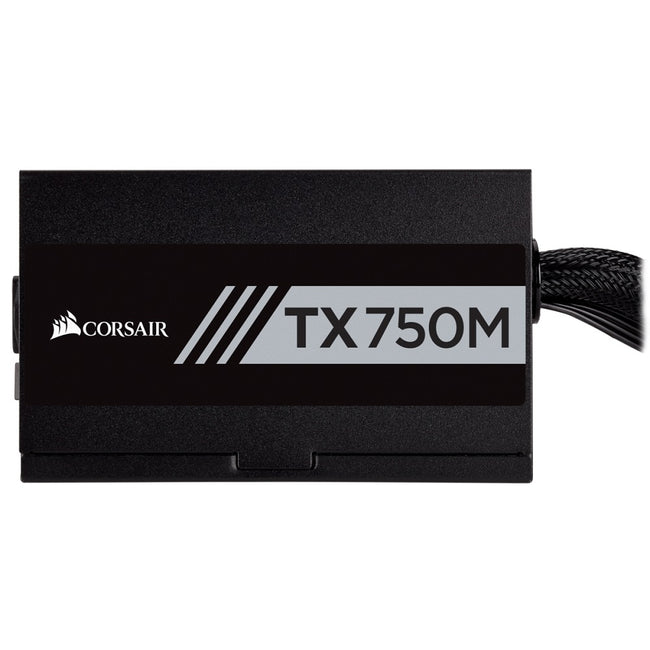

TX-M Series TX750M

Model

CP-9020131-NA

Details

Type

ATX12V v2.4 / EPS 2.92

Maximum Power

750W

Fans

1 x 120mm Rifle Bearing Fan

PFC

Active

Main Connector

24Pin

+12V Rails

Single

PCI-Express Connector

4 x 6+2-Pin

SATA Power Connector

8

Haswell Support

Yes

Modular

Semi-Modular

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

47 - 63 Hz

Input Current

10 - 5 A

Output

+3.3V@25A, +5V@25A, +12V@62A, -12V@0.8A, +5Vsb@3A

MTBF

>100,000 Hours

Approvals

FCC, ICES, CE, UL, cUL, RCM, TÜV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC

Dimensions

3.39" x 5.91" x 5.51"

Max PSU Length

140 mm

Weight

3.75 lbs.

Features

Connectors

1 x 24-pin ATX
1 x EPS Connector
2 x Floppy Connector
7 x 4-Pin Peripheral Connector
4 x PCIe Connector
8 x SATA Connector

Features

50 degree C Operating Temperature: Can output full power even at very high ambient temperatures

80 Plus Gold: Runs cooler and uses less power than less efficient power supplies

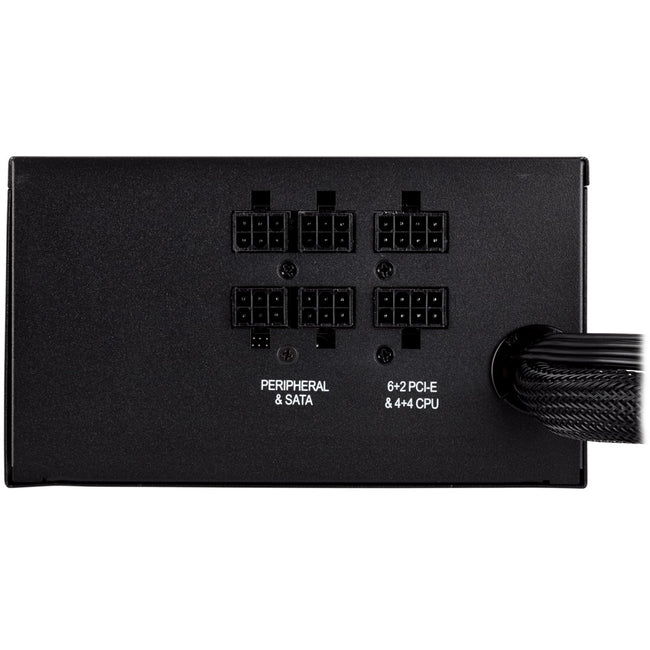

Semi-Modular: Allows user to only use the cables they need for a cleaner looking build with better airflow

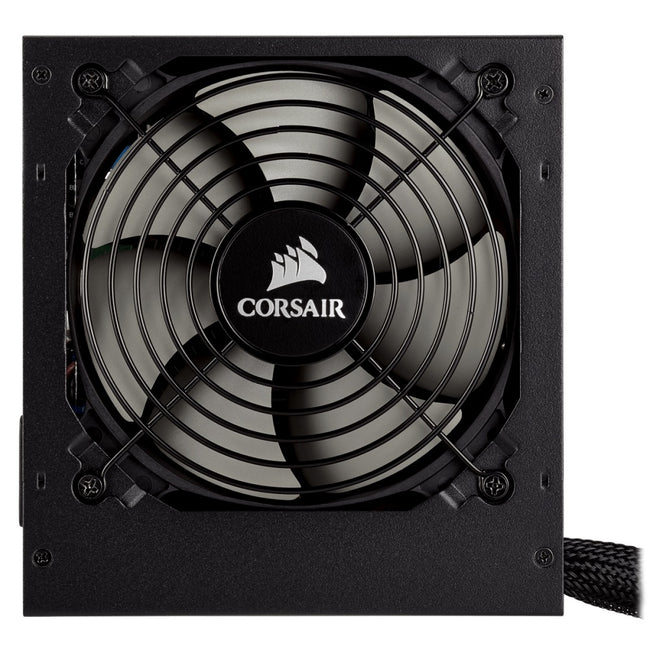

120mm Rifle Bearing Fan: Quieter than ball bearing but longer life than sleeve bearing

All Japanese Capacitors: Unparalleled reliability, even at higher operating temperatures

Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components

Package Content

TXM Series ATX Power Supply
Power cord

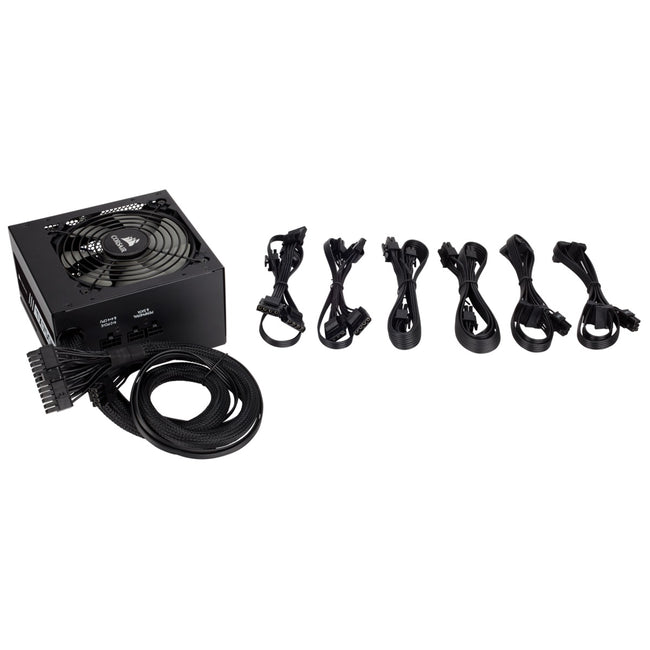

Modular cables
100mm floppy adapter
Mounting screws
Cable ties
Corsair case badge
User manual
