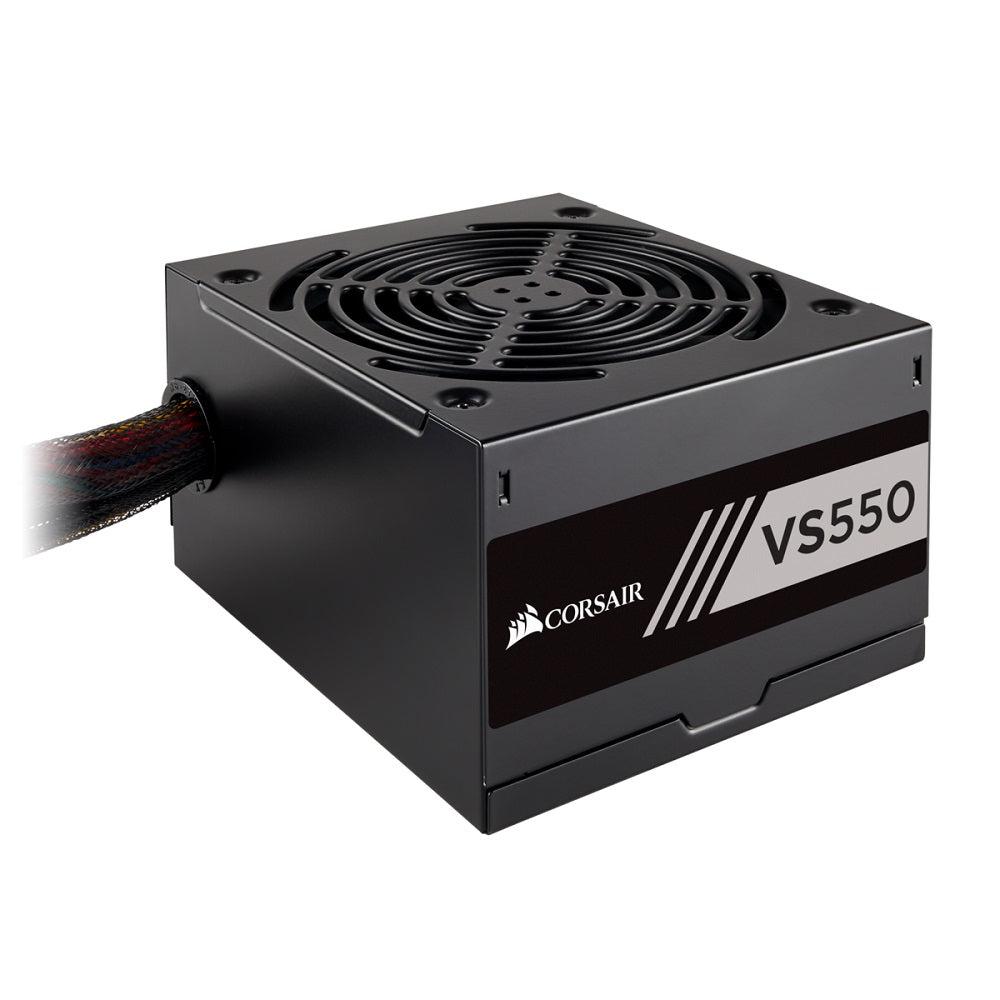

Corsair PSU VS Series VS550 — 550 Watt 80 PLUS White Certified Power Supply PSU

Sold out
Sale
BND85.00
You Save: (%)

Availability: In stock

Vendor: Corsair

The CORSAIR VS Series combines stable 80 PLUS efficiency power and affordable pricing from the world’s most trusted name in PC power supplies.

Model

Brand
CORSAIR
Series
VS Series VS550
Model
CP-9020171-NA

Details

Type
ATX12V v2.31 / EPS 2.92
Maximum Power
550W
Fans
1 x 120mm Thermally Controlled Sleeve Bearing Fan
PFC
Active
Main Connector
24Pin
+12V Rails
Single
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
6
Energy-Efficient
80 PLUS White Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
47 - 63 Hz
Input Current
10 - 5 A
Output
+3.3V@24A, +5V@20A, +12V@44A, -12V@0.3A, +5VSB@3A
MTBF
100,000 hours
Approvals
FCC, cTUVus, TUV, CCC, BSMI, CE, CB, TUV-S, EAC, RCM, KC, Reach, WEEE and RoHS
Dimensions
5.91" x 4.92" x 3.39"
Max PSU Length
125 mm
Weight
4.12 lbs.

Features

Connectors
1 x 24-pin ATX
1 x EPS12V/ATX12V
2 x PCIe
6 x SATA
2 x SATA-PATA-PATA-FDD
Features
80 PLUS efficiency: Runs cooler and uses less power than non-certified power supplies

3-year warranty: Backed by CORSAIR’s legendary technical support and customer service

Black housing, cable sleeves and connectors: Give your build the high-end look without breaking the bank

Thermally controlled 120mm fan: Quiet operation across a wide range of loads
Package Content
VS Series ATX Power Supply
Power cord
Mounting screws
Warranty Document
