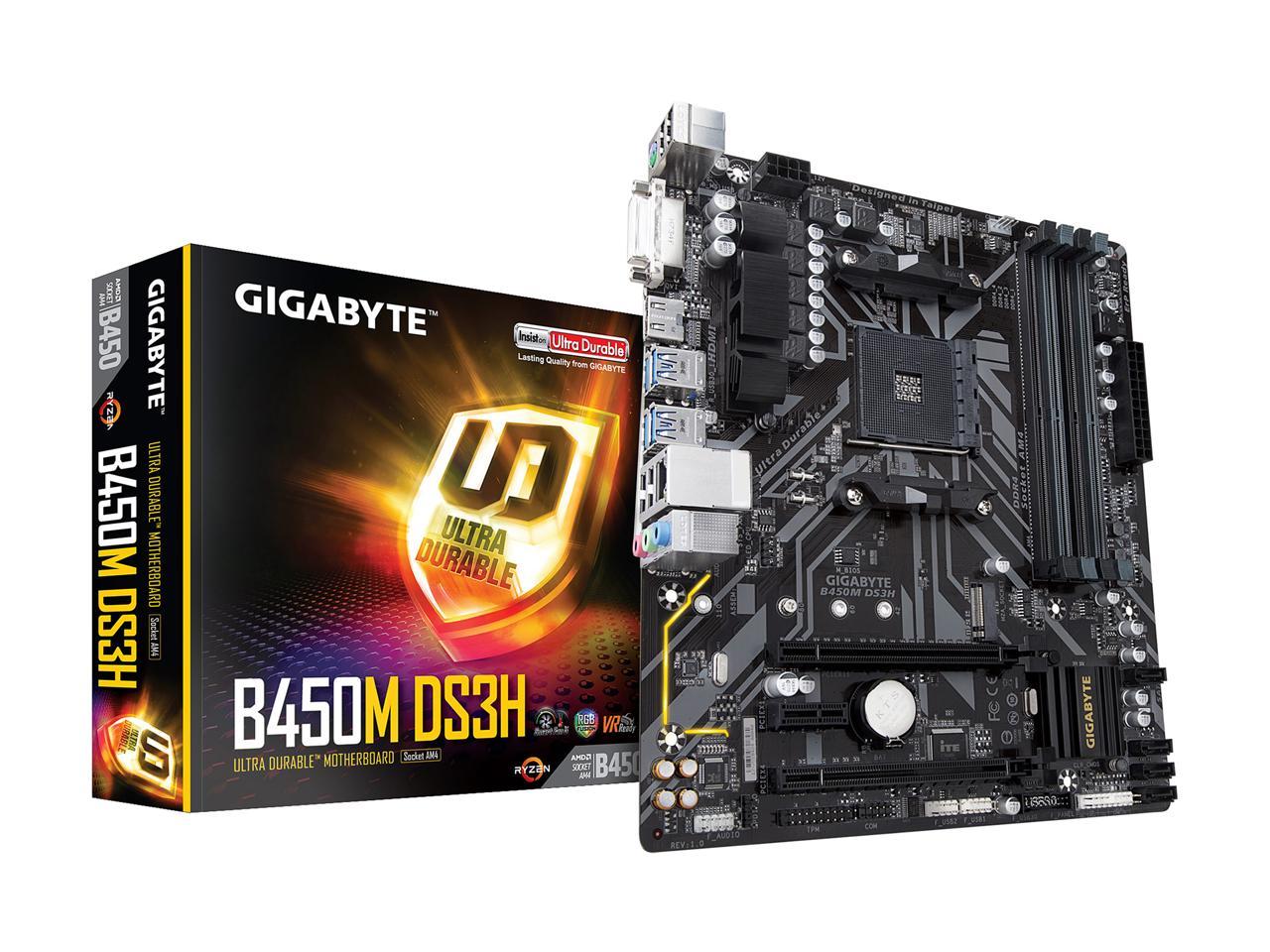

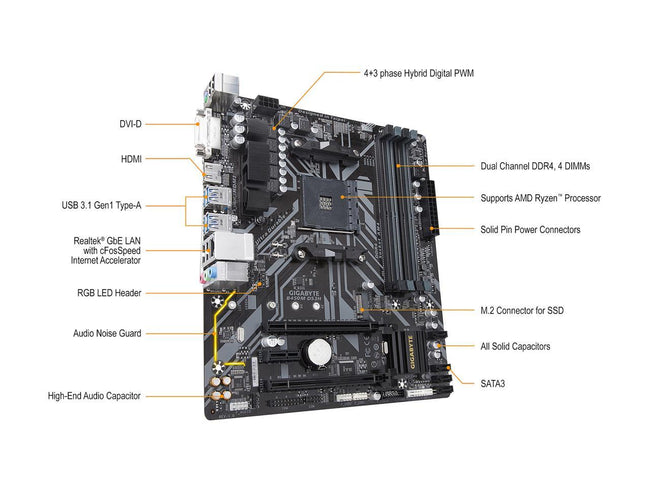

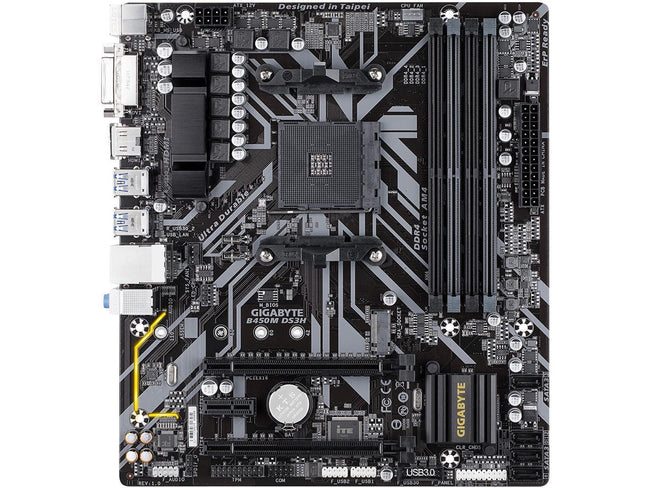

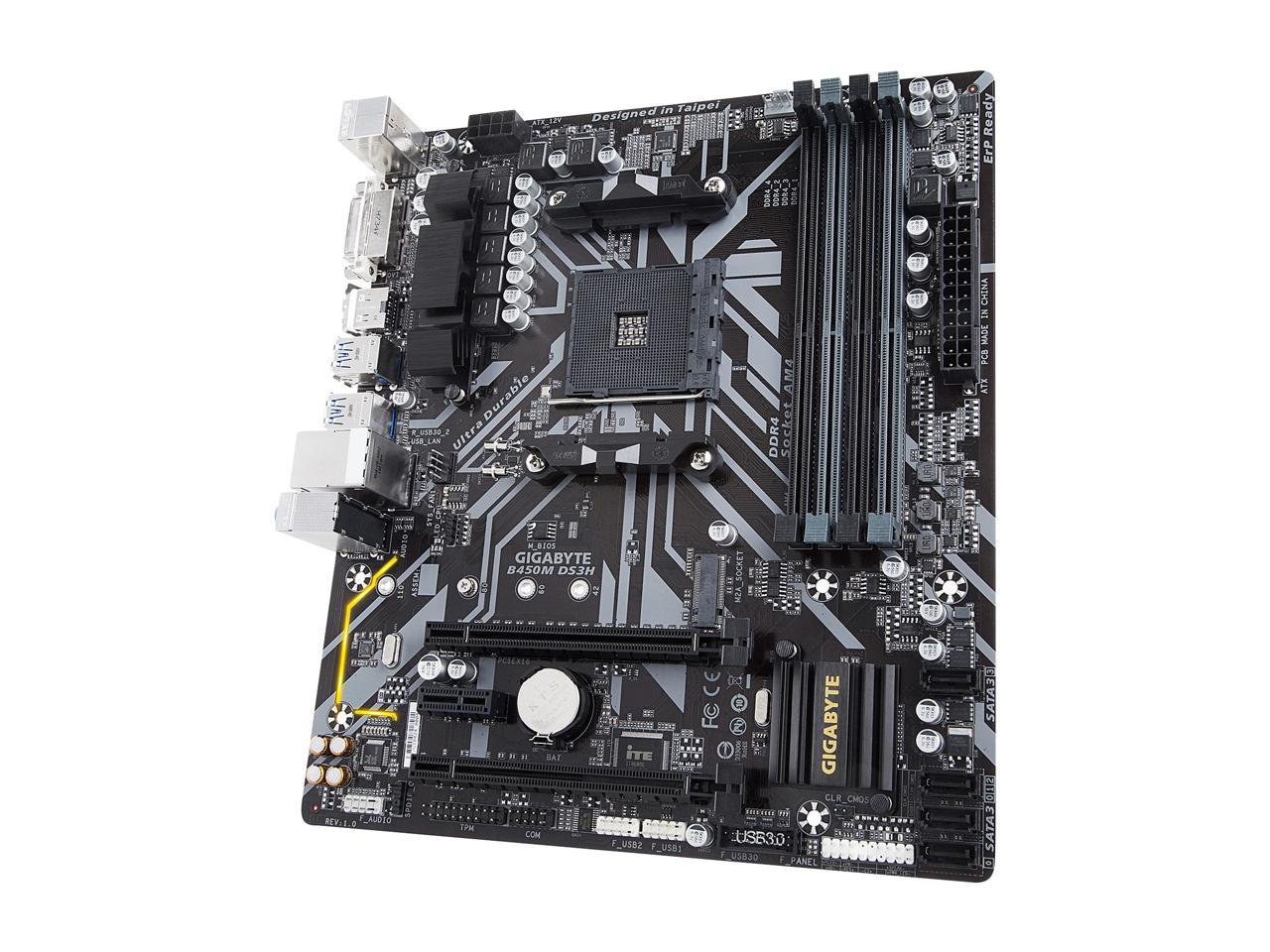

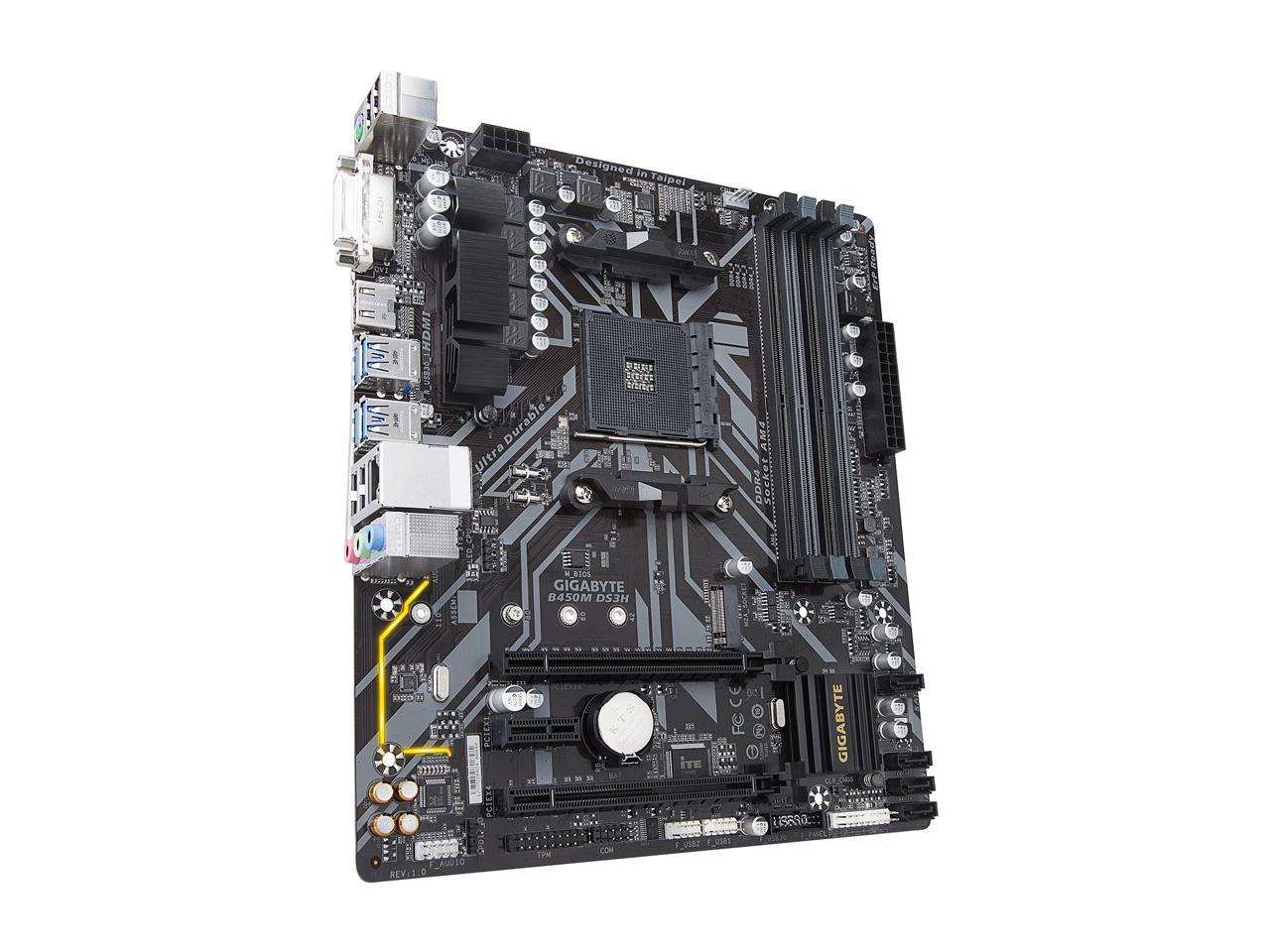

Gigabyte B450M DS3H AM4 AMD B450 Sata 6gb/s Micro ATX AMD Motherboard

BND135.00
You Save: (%)

Availability: In stock

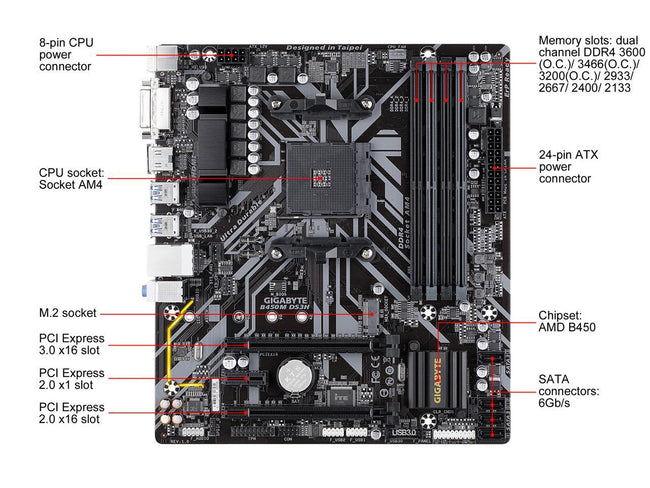

Model
Brand GIGABYTE
Model B450M DS3H
Supported CPU
CPU Socket Type  AM4
CPU Type AM4 Socket: Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
Chipsets
Chipset  AMD B450
Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 3.0 x16  1 x PCI Express x16 slot, running at x16 (PCIEX16)*
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot conforms to PCI Express 3.0 standard.
* Actual support may vary by CPU.
PCI Express 2.0 x16 1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x1 1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
* Supports only M.2 SATA SSDs when using an AMD Athlon-series / 7th Gen. A-series or Athlon X4 APU.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Integrated Graphics Processor:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)

Maximum shared memory of 16GB
(Note) Actual support may vary by CPU.
Onboard Audio
Audio Chipset  Realtek ALC887
Audio Channels  2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Onboard LAN
LAN Chipset Realtek GbE LAN chip
Max LAN Speed 10/100/1000Mbps

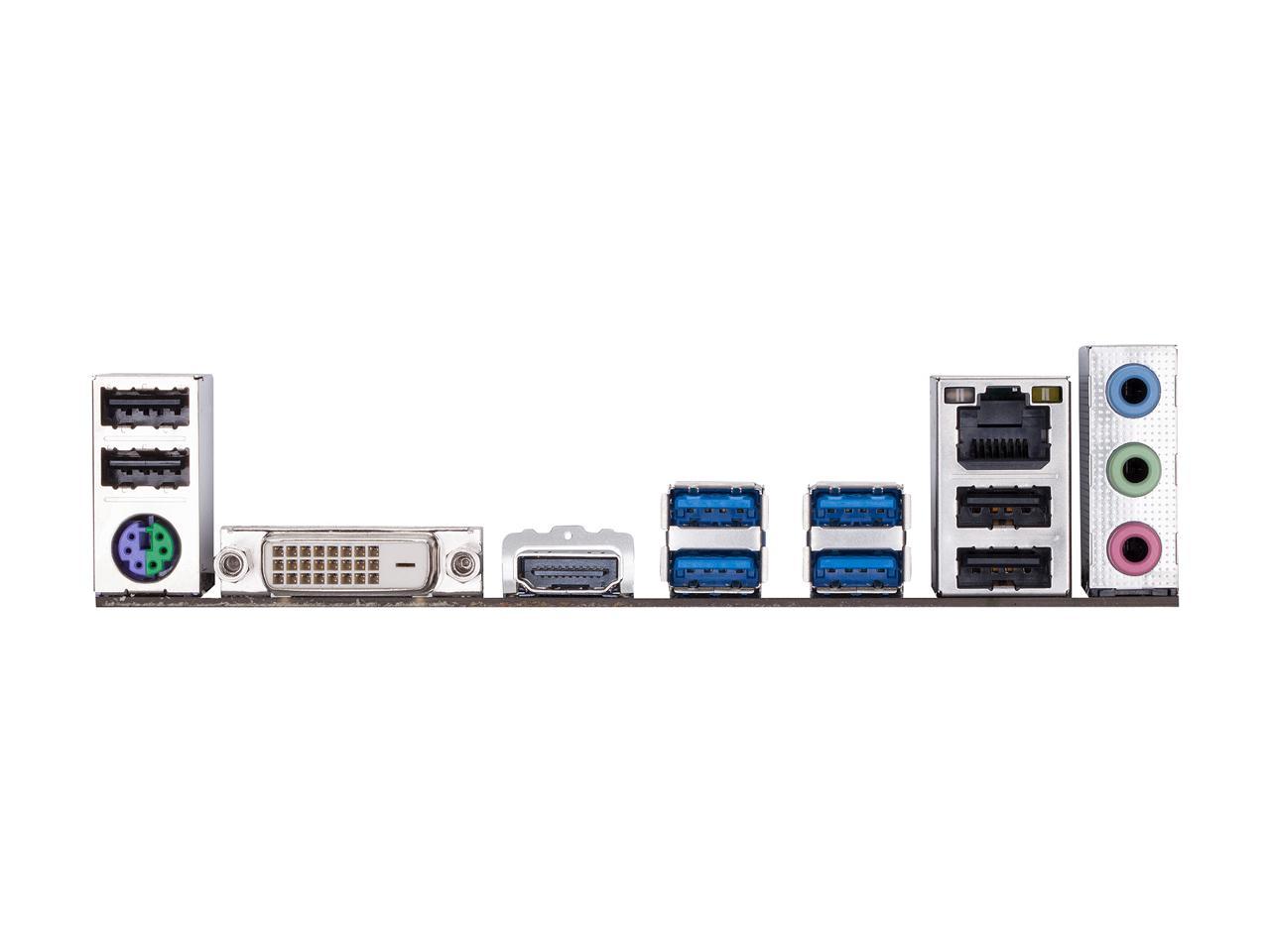

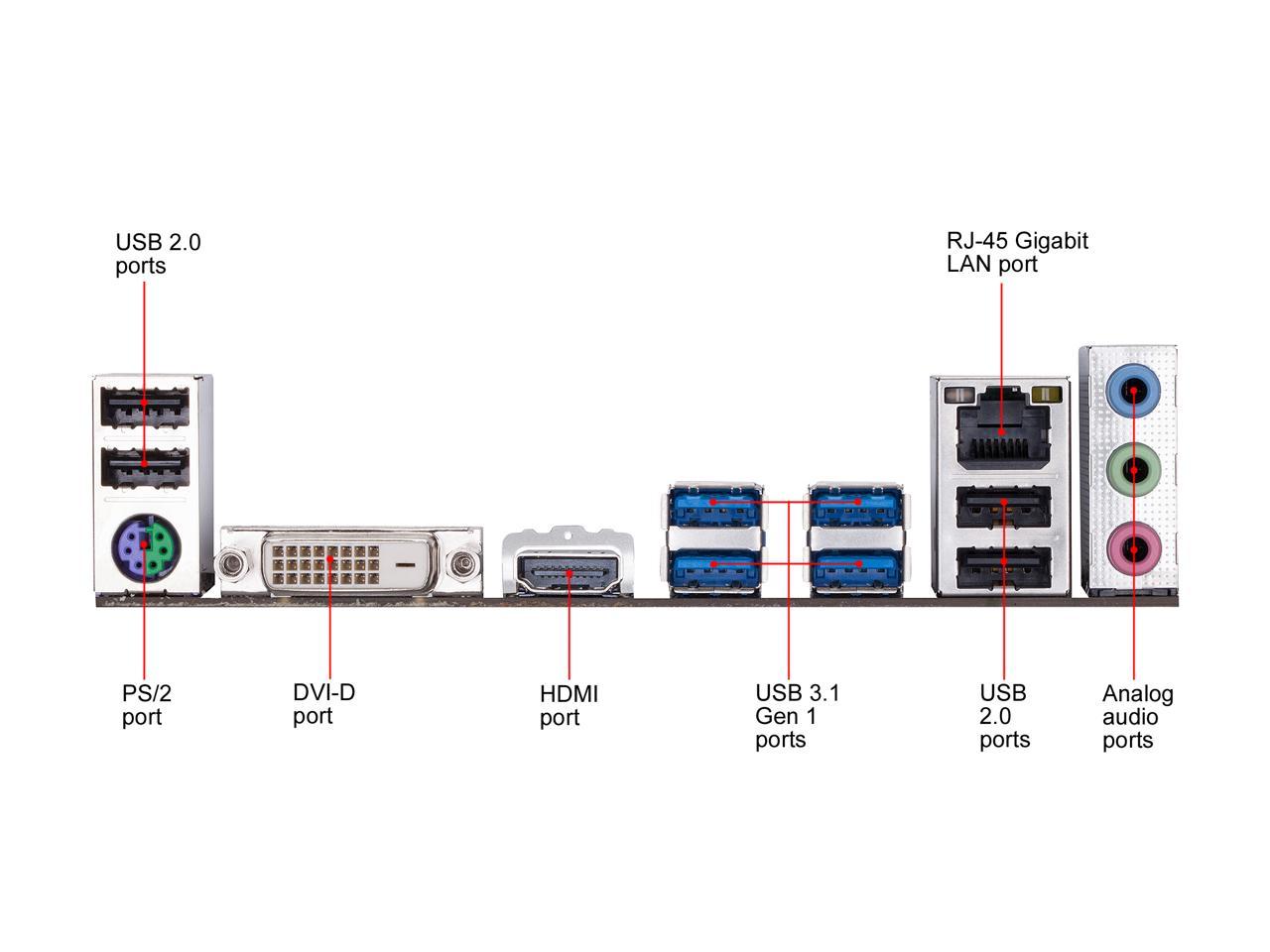

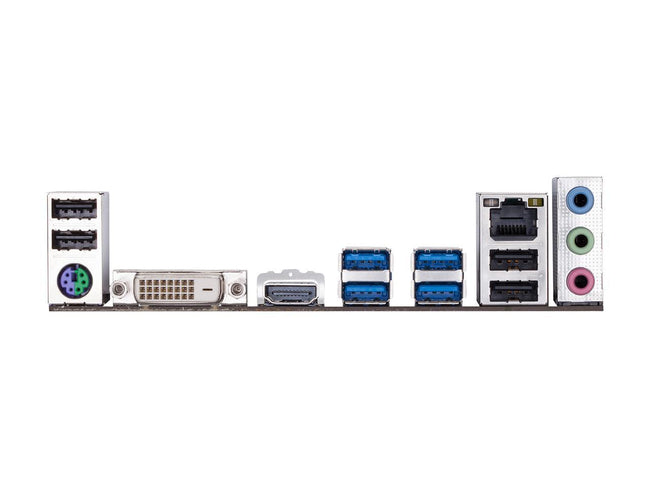

Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
LED Lighting RGB
Dimensions (W x L) 9.6" x 8.5"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
